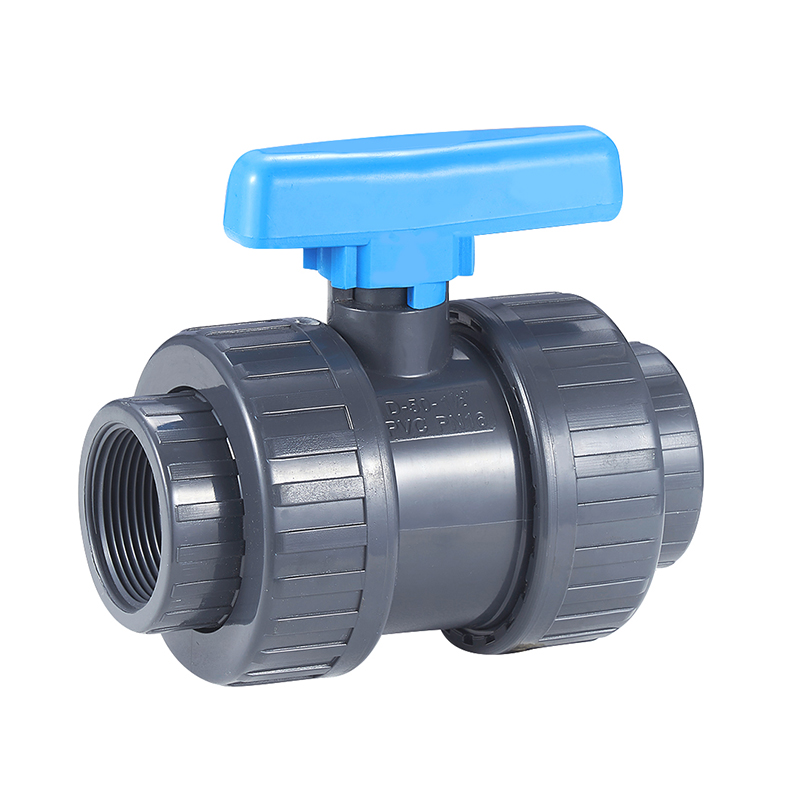

Agricultural irrigation Double Union Ball Valve X9211-S yellow color

Size: 1/2"; 3/4"; 1"; 1-1/4"; 1-1/2"; 2"; 2-1/2"; 3"; Code: X9211 Description: Double Union Ball Valve

Products Details

SIZE NPT BSPT BS ANSI DIN JIS
 Thd./in d1 d1 d1 d1 D L1 L2 H
15mm (1/2") 14 14 22 21.3 20 22 28.6 79.8 64.7 76.7
20mm (3/4") 14 14 26 26.7 25 26 34.2 92.8 76.9 89.4
25mm (1") 11.5 11 34 33.4 32 32 43.1 113.8 92.6 107.1
40mm (1½") 11.5 11 48 48.25 50 48 61.8 155.6 109.6 140.5
50mm (2") 11.5 11 60 60.3 63 60 77.2 193 128 164.5
ITEM COMPONENT MMATERIAL QUANTITY
1 HANDLE ABS 1
2 O-RING EPDM·NBR·FPM 1
3 STEM U-PVC 1
4 BODY U-PVC 1
5 SEAT SEAL P.T.F.E 2
6 BALL U-PVC 1
7 O-RING EPDM·NBR·FPM 1
8 SEAL CARRIER U-PVC 1
9 O-RING EPDM·NBR·FPM 2
10 END CONNECTOR U-PVC 2
11 UNION NUT U-PVC 2

X9211

X9211
