When it comes to plumbing, elbow pipe fittings are essential components that allow pipes to change direction and navigate around obstacles. These fittings come in various materials and sizes, making them versatile for different plumbing applications. In this blog, we will go over the basics of elbow pipe fittings, how to select the right one, and how to install them.
What are Elbow Pipe Fittings?

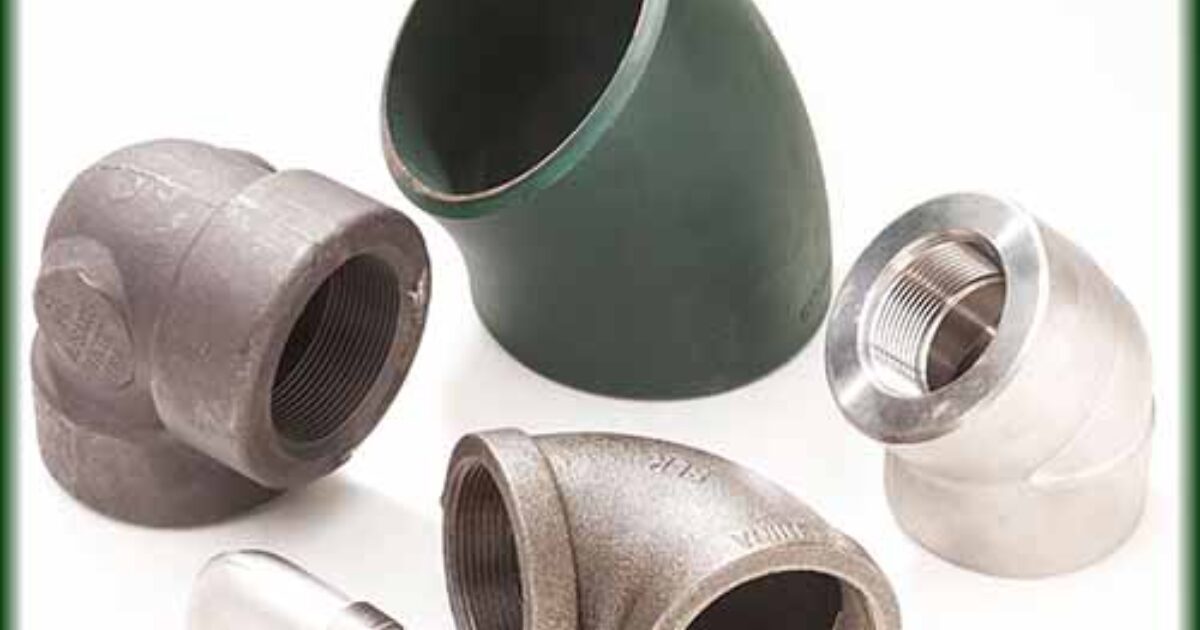

Elbow pipe fittings are curved fittings that connect two pipes at an angle to change the direction of the flow. The most common angles are 45 and 90 degrees, but they can also come in different angles depending on the plumbing needs. Elbow fittings are usually made of brass, copper, PVC, or stainless steel, and they can be threaded or soldered.
Selecting the Right Elbow Pipe Fitting
Choosing the right elbow pipe fitting depends on the plumbing system's needs and the materials used. Here are some factors to consider when selecting an elbow pipe fitting:
Material: The material used for the plumbing system will determine the type of elbow pipe fitting required. Brass, copper, and stainless steel elbow pipe fittings are typically used in commercial plumbing systems, while PVC elbow pipe fittings are used in residential plumbing systems.
Size: The diameter of the pipes being connected determines the size of the elbow pipe fitting required. The fitting's size must match the pipe size to guarantee a watertight seal.
Angle: The angle of the elbow pipe fitting needed depends on where it will be installed and the plumbing system's configuration. Different angles are available, such as 45 degrees, 90 degrees, or custom angles.
Pressure rating: The pressure rating of the elbow pipe fitting must match or exceed the system's pressure. Failure to do so can lead to leaks or even a burst pipe causing expensive damage.
Installation of Elbow Pipe Fittings
Elbow pipe fittings can be installed using different methods, depending on the type of material and fittings used. Here is a general guide on how to install elbow pipe fittings:
Prepare the pipes: Cut the pipes to the required length, deburr the edges, and clean them with a pipe cleaner or sandpaper.
Apply the sealant: If using a threaded elbow pipe fitting, apply some thread sealant to the threads. For soldered fittings, apply some flux to the joint.
Fit the fitting: Place the elbow pipe fitting onto the pipe, ensuring it seats well. For threaded fittings, hand tighten the fitting before using a wrench to firmly secure it. For soldered fittings, heat the joint with a torch and apply the solder. Allow the joint to cool before testing.
Test the system: Turn on the water supply and check for any leaks. If there are no issues, the system is ready to use.
In conclusion, elbow pipe fittings are essential components of any plumbing system. Understanding how to select the right fitting and installing it correctly is crucial to avoid costly repairs due to leaks or burst pipes. Always ensure that the fitting is the right material, size, angle, and pressure rating for your plumbing system. With the right elbow pipe fitting, your plumbing system will function efficiently, providing you with consistent and safe water supply.
